Inline Capacitive Based Oil Debris Monitoring Sensor

Objective

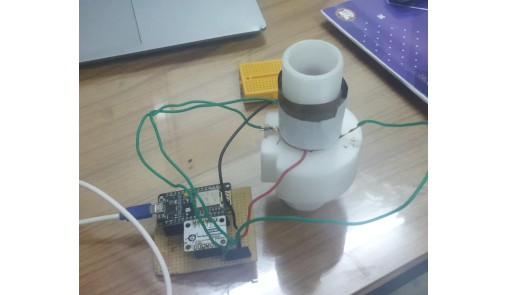

Development of an inline Capacitive based Oil Debris Monitoring Sensor for monitoring debris in coolant oil used in turbines. Designed and 3D printed the sensor and signal conditioning circuit made using FDC1004 capacitive evaluation board where the data is further processed using Esp32.

Developed under the guidance of Dr. G. Uma, NIT Trichy

Tech Stack

  • Signal processing
  • ADC conversion
  • CAD Modelling
  • IOT Platforms

    • Prototype

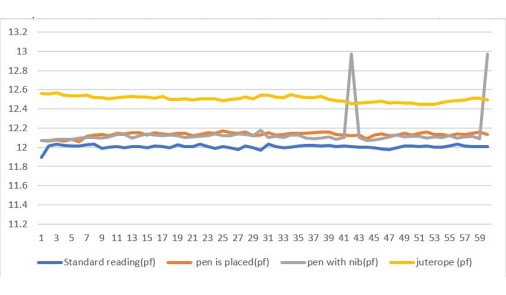

    Test Result

    Spike is observed when Di-electric debris is passed
